GCU500 Series
500W chassis mount AC-DC power supplies with medical (2 x MOPP) & ITE approvals

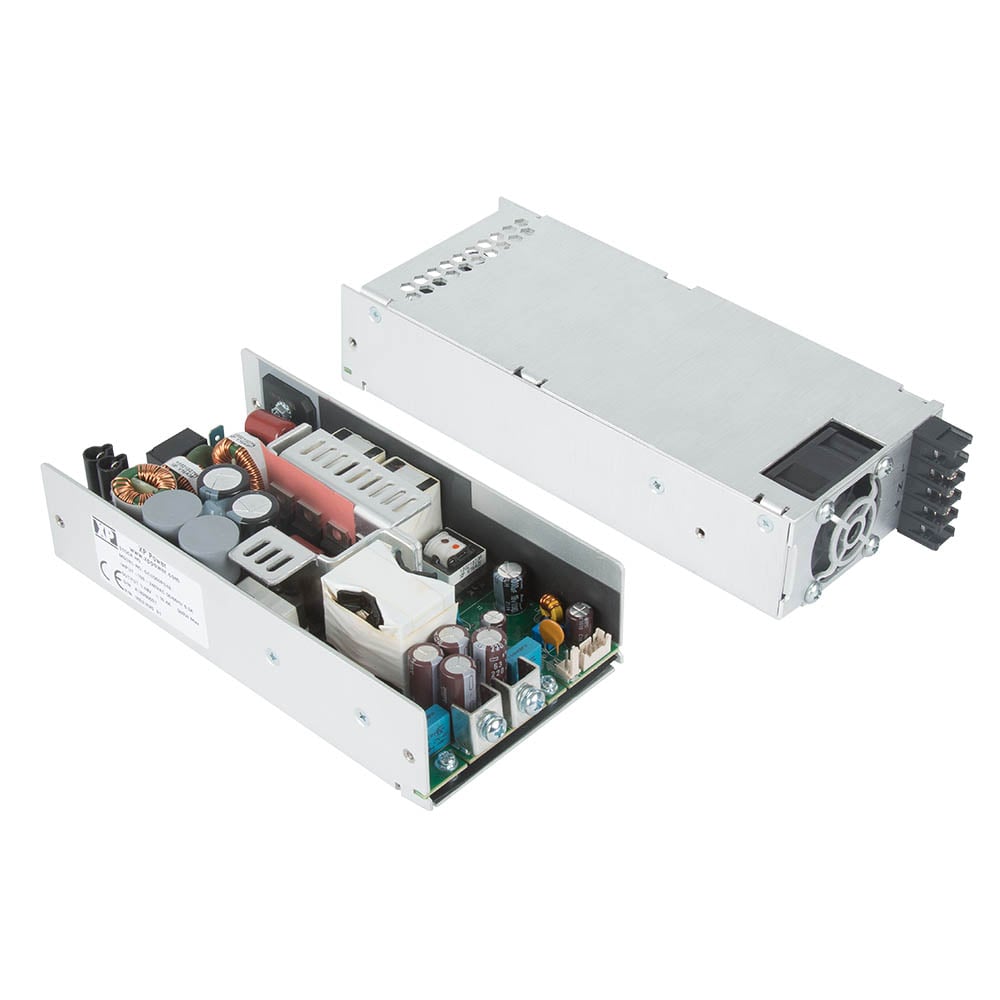

The chassis mount GCU500, with both Medical 2 x MOPP (Input to Output), 1 x MOPP (Input to Ground) & ITE safety approvals. Available in two case styles: U channel (250W convection, 500W with external 10CFM fan cooling) or enclosed 500W with built-in fan cooling (model numbers with suffix -EF).
With a profile below 1U the GCU500 achieves EN55011/32 Level B conducted emissions compliance whilst maintaining very low earth leakage currents making it suitable for medical, industrial electronics and ITE applications.
Features
- 500W fan cooled 250W convection cooled
- 6.5” x 3.3” footprint, 1.55” profile
- Regulated single outputs 12V to 48VDC
- Input range 85 to 264VAC
- Medical (2 x MOPP) & ITE safety approvals
- Class B emissions
- Power fail, remote On/Off & remote sense
- 5V 0.2A standby
- 12V 0.5A fan supply
- -40°C to +70°C operation
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
GCU500PS12 | 500W | Single Phase | 12V | 41.7A | Datasheet | Stock | RFQ |
|
|
GCU500PS15 | 500W | Single Phase | 15V | 33.4A | Datasheet | Stock | RFQ |
|
|
GCU500PS18 | 500W | Single Phase | 18V | 27.8A | Datasheet | Stock | RFQ |
|
|
GCU500PS24 | 500W | Single Phase | 24V | 20.8A | Datasheet | Stock | RFQ |
|
|
GCU500PS36 | 500W | Single Phase | 36V | 13.9A | Datasheet | Stock | RFQ |
|
|
GCU500PS48 | 500W | Single Phase | 48V | 10.4A | Datasheet | Stock | RFQ |
|
GCU500PS12-EF | 500W | Single Phase | 12V | 41.7A | Datasheet | Stock | RFQ |
|
|
GCU500PS15-EF | 500W | Single Phase | 15V | 33.4A | Datasheet | Stock | RFQ |
|
|
GCU500PS18-EF | 500W | Single Phase | 18V | 27.8A | Datasheet | Stock | RFQ |
|
|
GCU500PS24-EF | 500W | Single Phase | 24V | 20.8A | Datasheet | Stock | RFQ |
|
|
GCU500PS36-EF | 500W | Single Phase | 36V | 13.9A | Datasheet | Stock | RFQ |
|
|
GCU500PS48-EF | 500W | Single Phase | 48V | 10.4A | Datasheet | Stock | RFQ |
