IQ Series

±10% input, 1W, semi-regulated, DC-DC converters in a SIP7 PCB mount package

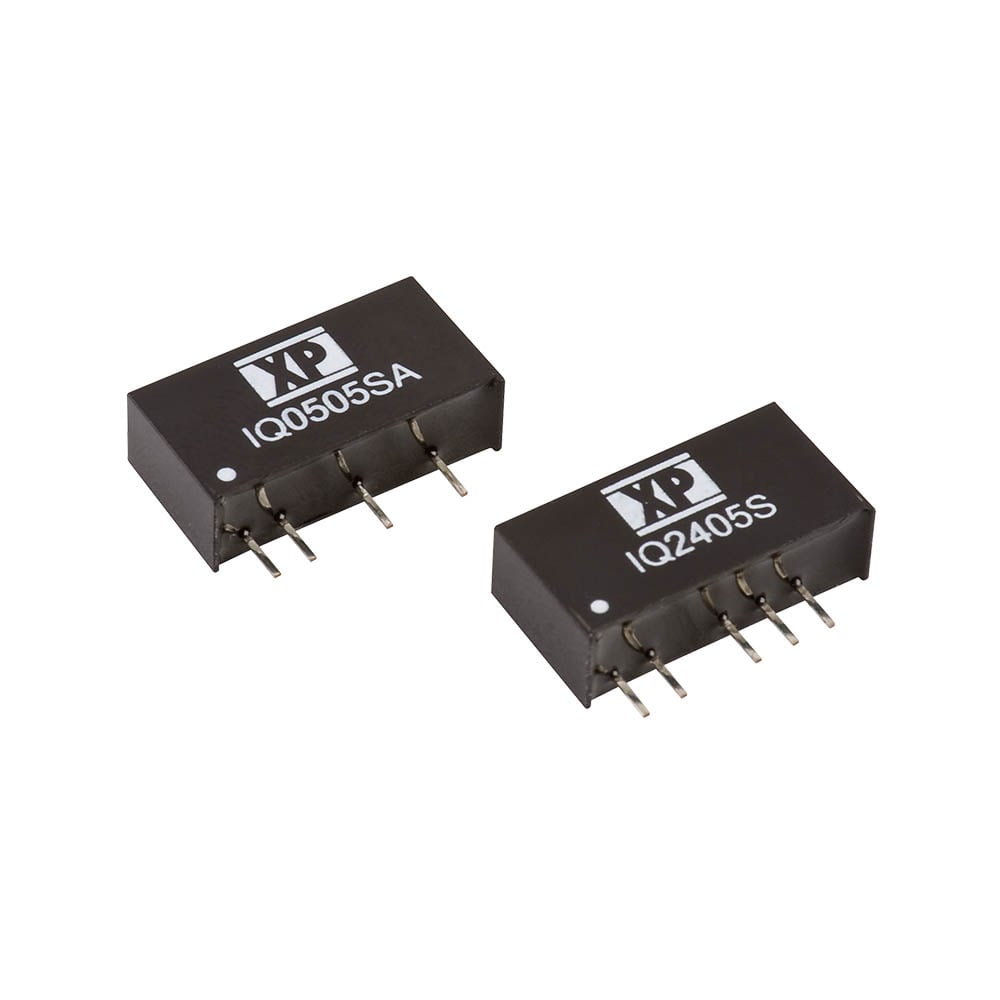

The IQ series is housed in a SIP7 plastic case for PCB mounting. Featuring a ±10% input voltage range for 5, 12, 15 24 & 48VDC nominal inputs, offering single outputs of 5, 9, 12 or 15VDC, dual outputs ±5, ±9, ±12 & ±15VDC.

The 1W IQ provides 1kVDC isolation between input and output as standard, with 3kVDC isolation available as an option. The operating temperature range is from -40°C to +85°C with no derating.

Datasheet Contact us

Features

Semi-regulated single & dual outputs
±10% input range
Single outputs 5.0 to 15VDC
Dual outputs ±5.0 to ±15VDC
SIP7 package
1.0kVDC isolation, 3.0kVDC option
-40°C to +85°C operating temperature
3 year warranty

Model Name	Power	Input Voltage	Output Voltage	Output Current	Datasheet	Stock Check	RFQ
IQ0505SA	1W	4.5 to 5.5VDC	5V	0.2A	Datasheet	Stock	RFQ
IQ0509SA	1W	4.5 to 5.5VDC	9V	0.111A	Datasheet	Stock	RFQ
IQ0512SA	1W	4.5 to 5.5VDC	12V	0.083A	Datasheet	Stock	RFQ
IQ0515SA	1W	4.5 to 5.5VDC	15V	0.067A	Datasheet	Stock	RFQ
IQ1205SA	1W	10.8 to 13.2VDC	5V	0.2A	Datasheet	Stock	RFQ
IQ1209SA	1W	10.8 to 13.2VDC	9V	0.111A	Datasheet	Stock	RFQ
IQ1212SA	1W	10.8 to 13.2VDC	12V	0.083A	Datasheet	Stock	RFQ
IQ1215SA	1W	10.8 to 13.2VDC	15V	0.067A	Datasheet	Stock	RFQ
IQ1505SA	1W	13.5 to 16.5VDC	5V	0.2A	Datasheet	Stock	RFQ
IQ1509SA	1W	13.5 to 16.5VDC	9V	0.111A	Datasheet	Stock	RFQ
IQ1512SA	1W	13.5 to 16.5VDC	12V	0.083A	Datasheet	Stock	RFQ
IQ1515SA	1W	13.5 to 16.5VDC	15V	0.067A	Datasheet	Stock	RFQ
IQ2405SA	1W	21.6 to 26.4VDC	5V	0.2A	Datasheet	Stock	RFQ
IQ2409SA	1W	21.6 to 26.4VDC	9V	0.111A	Datasheet	Stock	RFQ
IQ2412SA	1W	21.6 to 26.4VDC	12V	0.083A	Datasheet	Stock	RFQ
IQ2415SA	1W	21.6 to 26.4VDC	15V	0.067A	Datasheet	Stock	RFQ
IQ4805SA	1W	43.2 to 52.8VDC	5V	0.2A	Datasheet	Stock	RFQ
IQ4809SA	1W	43.2 to 52.8VDC	9V	0.111A	Datasheet	Stock	RFQ
IQ4812SA	1W	43.2 to 52.8VDC	12V	0.083A	Datasheet	Stock	RFQ
IQ4815SA	1W	43.2 to 52.8VDC	15V	0.067A	Datasheet	Stock	RFQ
