JCB Series

2:1 input, 3W, regulated, DC-DC converters in a DIP24 PCB mount package

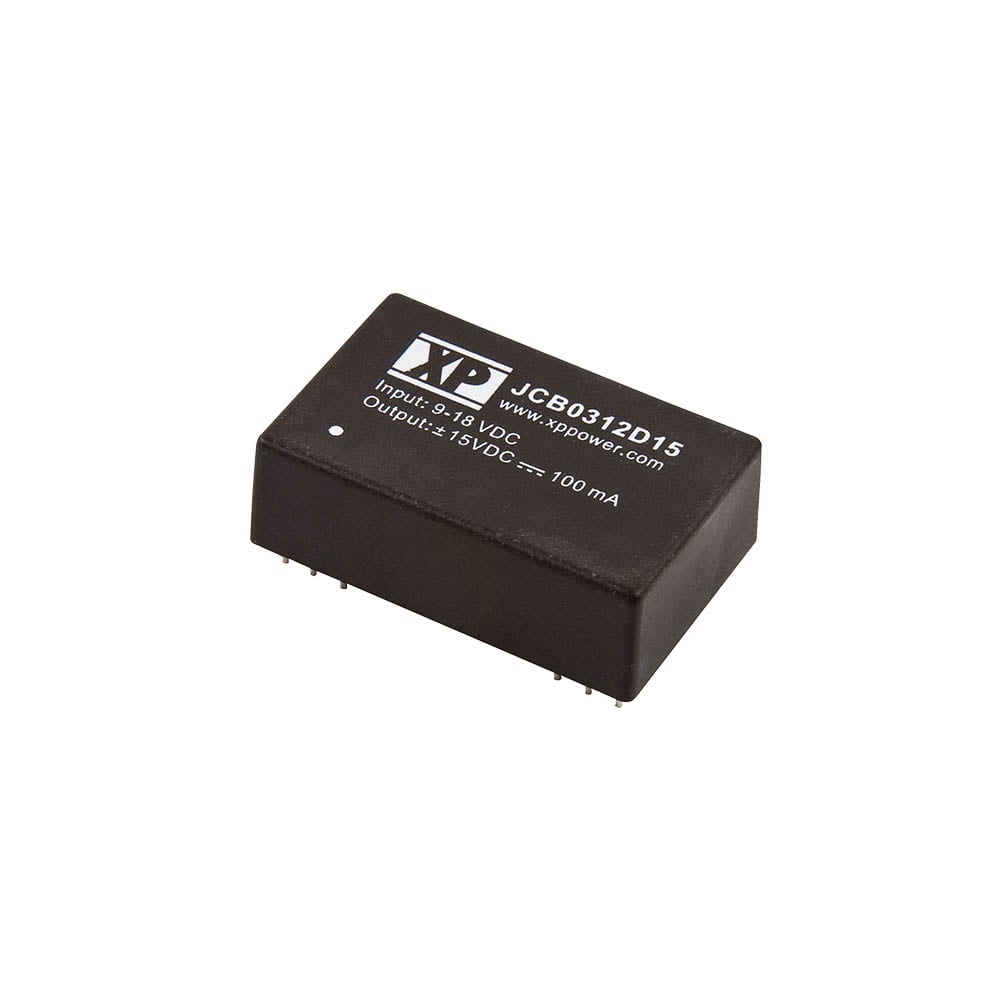

The JCB03 series is housed in a DIP24 PCB mount plastic case (metal case optional). Featuring a 2:1 input voltage range of 4.5 to 9VDC, 9 to 18VDC, 18 to 36VDC or 36 to 75VDC with regulated single outputs of 5, 9, 12, 15 & 24VDC and dual outputs ±5, ±9, ±12, ±15 or ±24VDC.

The 3W JCB03 has 1.5kVDC (3kV option) isolation between input and output, over voltage, overload & short circuit protection is standard. The operating temperature range is from -40°C to +100°C, with derating above +70°C.

Datasheet Contact us

Features

Regulated single & dual outputs
2:1 input range
Single outputs 5.0 to 24VDC
Dual outputs ±5.0 to ±24VDC
DIP24 package
1.5kVDC isolation, 3.0kVDC option
Metal case option
-40°C to +100°C operating temperature
Full power to +85°C
3 year warranty

Model Name	Power	Input Voltage	Output Voltage	Output Current	Datasheet	Stock Check	RFQ
JCB0305D05	3W	4.5 to 9VDC	5V, -5V	0.3A, -0.3A	Datasheet	Stock	RFQ
JCB0305D09	3W	4.5 to 9VDC	9V, -9V	0.167A, -0.167A	Datasheet	Stock	RFQ
JCB0305D12	3W	4.5 to 9VDC	12V, -12V	0.125A, -0.125A	Datasheet	Stock	RFQ
JCB0305D15	3W	4.5 to 9VDC	15V, -15V	0.1A, -0.1A	Datasheet	Stock	RFQ
JCB0305D24	3W	4.5 to 9VDC	24V, -24V	0.63A, -0.63A	Datasheet	Stock	RFQ
JCB0305S05	3W	4.5 to 9VDC	5V	0.6A	Datasheet	Stock	RFQ
JCB0305S09	3W	4.5 to 9VDC	9V	0.333A	Datasheet	Stock	RFQ
JCB0305S12	3W	4.5 to 9VDC	12V	0.25A	Datasheet	Stock	RFQ
JCB0305S15	3W	4.5 to 9VDC	15V	0.2A	Datasheet	Stock	RFQ
JCB0305S24	3W	4.5 to 9VDC	24V	0.125A	Datasheet	Stock	RFQ
JCB0312D05	3W	9 to 18VDC	5V, -5V	0.3A, -0.3A	Datasheet	Stock	RFQ
JCB0312D09	3W	9 to 18VDC	9V, -9V	0.167A, -0.167A	Datasheet	Stock	RFQ
JCB0312D12	3W	9 to 18VDC	12V, -12V	0.125A, -0.125A	Datasheet	Stock	RFQ
JCB0312D15	3W	9 to 18VDC	15V, -15V	0.1A, -0.1A	Datasheet	Stock	RFQ
JCB0312D24	3W	9 to 18VDC	24V, -24V	0.63A, -0.63A	Datasheet	Stock	RFQ
JCB0312S05	3W	9 to 18VDC	5V	0.6A	Datasheet	Stock	RFQ
JCB0312S09	3W	9 to 18VDC	9V	0.333A	Datasheet	Stock	RFQ
JCB0312S12	3W	9 to 18VDC	12V	0.25A	Datasheet	Stock	RFQ
JCB0312S15	3W	9 to 18VDC	15V	0.2A	Datasheet	Stock	RFQ
JCB0312S24	3W	9 to 18VDC	24V	0.125A	Datasheet	Stock	RFQ
JCB0324D05	3W	18 to 36VDC	5V, -5V	0.3A, -0.3A	Datasheet	Stock	RFQ
JCB0324D09	3W	18 to 36VDC	9V, -9V	0.167A, -0.167A	Datasheet	Stock	RFQ
JCB0324D12	3W	18 to 36VDC	12V, -12V	0.125A, -0.125A	Datasheet	Stock	RFQ
JCB0324D15	3W	18 to 36VDC	15V, -15V	0.1A, -0.1A	Datasheet	Stock	RFQ
JCB0324D24	3W	18 to 36VDC	24V, -24V	0.063A, -0.063A	Datasheet	Stock	RFQ
JCB0324S05	3W	18 to 36VDC	5V	0.6A	Datasheet	Stock	RFQ
JCB0324S09	3W	18 to 36VDC	9V	0.333A	Datasheet	Stock	RFQ
JCB0324S12	3W	18 to 36VDC	12V	0.25A	Datasheet	Stock	RFQ
JCB0324S15	3W	18 to 36VDC	15V	0.2A	Datasheet	Stock	RFQ
JCB0324S24	3W	18 to 36VDC	24V	0.125A	Datasheet	Stock	RFQ
JCB0348D05	3W	36 to 72VDC	5V, -5V	0.3A, -0.3A	Datasheet	Stock	RFQ
JCB0348D09	3W	36 to 72VDC	9V, -9V	0.167A, -0.167A	Datasheet	Stock	RFQ
JCB0348D12	3W	36 to 72VDC	12V, -12V	0.125A, -0.125A	Datasheet	Stock	RFQ
JCB0348D15	3W	36 to 72VDC	15V, -15V	0.1A, -0.1A	Datasheet	Stock	RFQ
JCB0348D24	3W	36 to 72VDC	24V, -24V	0.063A, -0.063A	Datasheet	Stock	RFQ
JCB0348S05	3W	36 to 72VDC	5V	0.6A	Datasheet	Stock	RFQ
JCB0348S09	3W	36 to 72VDC	9V	0.333A	Datasheet	Stock	RFQ
JCB0348S12	3W	36 to 72VDC	12V	0.25A	Datasheet	Stock	RFQ
JCB0348S15	3W	36 to 72VDC	15V	0.2A	Datasheet	Stock	RFQ
JCB0348S24	3W	36 to 72VDC	24V	0.125A	Datasheet	Stock	RFQ
