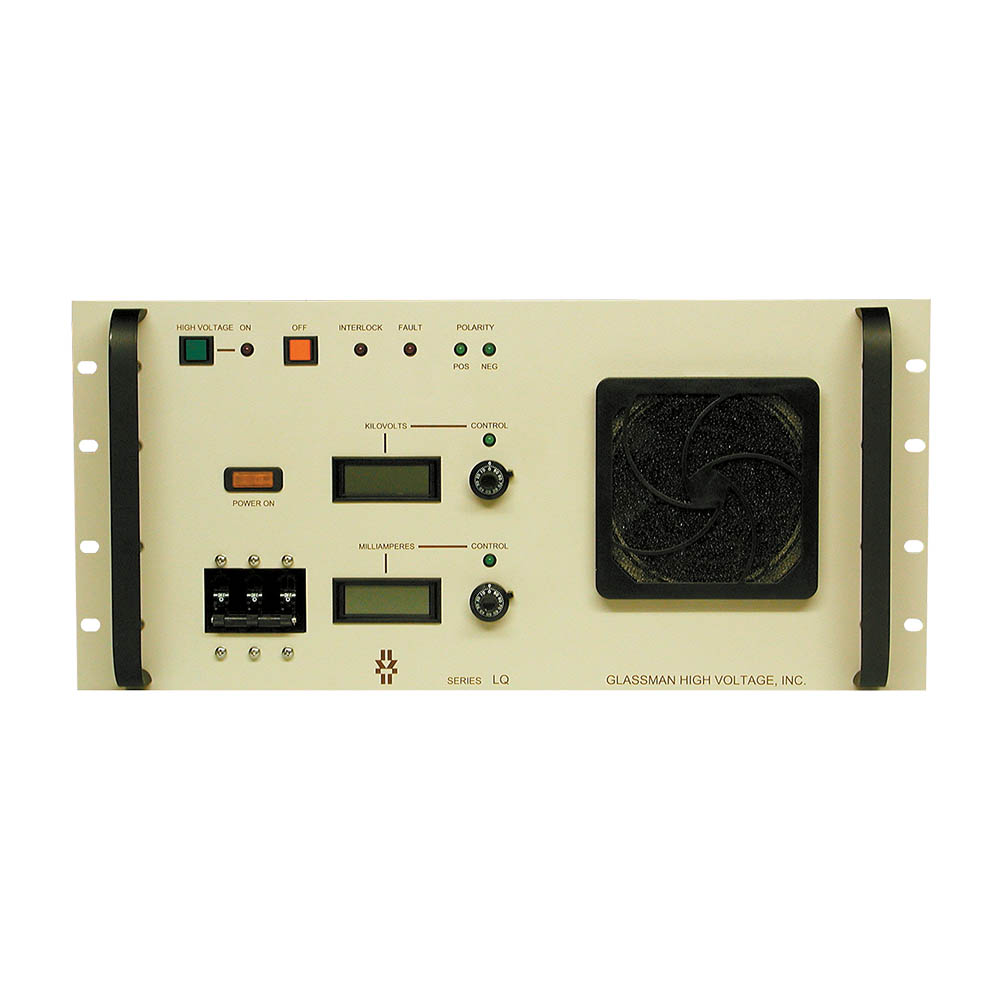

LQ Series
10kW regulated high voltage AC-DC power supplies with outputs from 0 - 1kV to 0 - 12kV DC
The 10kW LQ series is a high quality, high performance, high reliability & high stability high voltage power supply with low ripple & noise, being air insulated it facilitates a lower cost of ownership as well as being lighter than competing product & though various output control options, input voltages, low output discharge currents makes integrating this power supply into a new system or tool simple.
The LQ power supply modules can be paralleled up to a maximum of 50kW output power utilizing one master control module and up to four slave modules.
Designed for electrical design engineers & system integration on engineers in a wide range of industries including ion implant, E-beam welding & E-beam additive manufacturing & many other application specific markets that are challenged with limited high voltage integration experience & tight timelines.
Features
- Output voltages 0-1kVDC to 0-12kVDC
- Parallelable to 50kW
- 5U 19" rack mount
- 0 to 100% programmable voltage & current
- Local, analog, RS232/USB digital control. Ethernet is optional
- Output voltage & current regulated
- Low ripple <0.1% RMS of rated voltage at full load
- Voltage & current monitor outputs
- 3 phase 208VAC input standard, 200/380/415/480VAC options
- Efficiency >85%
- Air insulated
- Short circuit, arc & overload protection
- -20°C to +40°C operating temperature
- 1 year warranty
| Image | Model Name | Power | Output Voltage | Output Current | Package Size | Datasheet | RFQ |
|---|---|---|---|---|---|---|---|
|
LQ01.5N6.7 | 10kW | 0 to -1.5kV | 6.7A | 5U | Datasheet | RFQ |
|
|
LQ01.5P6.7 | 10kW | 0 to 1.5kV | 6.7A | 5U | Datasheet | RFQ |
|
|
LQ01N10.0 | 10kW | 0 to -1kV | 10A | 5U | Datasheet | RFQ |
|
|
LQ01P10.0 | 10kW | 0 to 1kV | 10A | 5U | Datasheet | RFQ |
|
|
LQ02N5.00 | 10kW | 0 to -2kV | 5A | 5U | Datasheet | RFQ |
|
|
LQ02P5.00 | 10kW | 0 to 2kV | 5A | 5U | Datasheet | RFQ |
|
|
LQ03N3.40 | 10kW | 0 to -3kV | 3.4A | 5U | Datasheet | RFQ |
|
|
LQ03P3.40 | 10kW | 0 to 3kV | 3.4A | 5U | Datasheet | RFQ |
|
|
LQ05N2.00 | 10kW | 0 to -5kV | 2A | 5U | Datasheet | RFQ |
|
|
LQ05P2.00 | 10kW | 0 to 5kV | 2A | 5U | Datasheet | RFQ |
|
|
LQ06N1.70 | 10kW | 0 to -6kV | 1.7A | 5U | Datasheet | RFQ |
|
|
LQ06P1.70 | 10kW | 0 to 6kV | 1.7A | 5U | Datasheet | RFQ |
|
|
LQ08N1.30 | 10kW | 0 to -8kV | 1.3A | 5U | Datasheet | RFQ |
|
|
LQ08P1.30 | 10kW | 0 to 8kV | 1.3A | 5U | Datasheet | RFQ |
|
|
LQ10N1.00 | 10kW | 0 to -10kV | 1A | 5U | Datasheet | RFQ |
|
|
LQ10P1.00 | 10kW | 0 to 10kV | 1A | 5U | Datasheet | RFQ |
|
|
LQ12N0.85 | 10kW | 0 to -12kV | 0.85A | 5U | Datasheet | RFQ |
|
|
LQ12P0.85 | 10kW | 0 to 12kV | 0.85A | 5U | Datasheet | RFQ |
