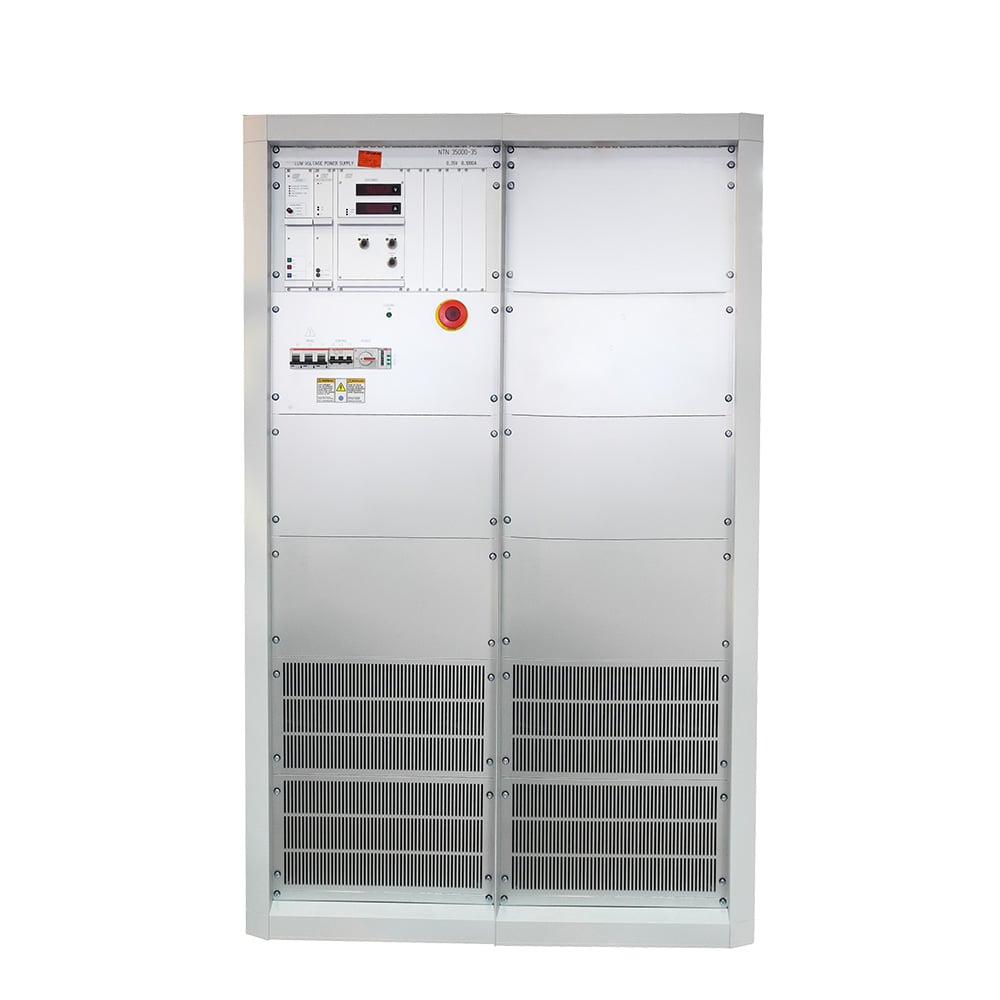

NTN100K0 Series

100kW regulated high voltage AC-DC power supplies with isolated output voltages from 0-125VDC to 0-350VDC

The NTN100K0 series are highly stable linear regulated power supplies with low ripple and an isolated output. Featuring thyristor (SCR) pre-regulation followed by transistor regulation to provide double stabilization.

The power supplies can be operated in local, analog (optional) and digital (optional) operating modes.

Sense line connections provide feedback compensation for voltage drop in the load lines.

Datasheet Contact us

Features

Output voltages 0-125VDC to 0-350VDC isolated
3 phase AC input
Continuous operation at full rated power
Multi-function control panel with user friendly interface
Digital, LAN and USB interface option
Analog programming/interface option
Manual voltage & current control with automatic transition & digital display
Set-point display via a button
Set-point adjustment possible with disabled output
Push-button switch for output voltage
Short circuit & arc protection
Inrush current limiter
2 year warranty

Model Name	Power	Input Voltage	Output Voltage	Output Current	Datasheet	Stock Check
NTN100K0-125	100000W	Three Phase	125V	800A	Datasheet	RFQ
NTN100K0-200	100000W	Three Phase	200V	500A	Datasheet	RFQ
NTN100K0-350	100000W	Three Phase	350V	300A	Datasheet	RFQ
