No longer manufactured
Unfortunately, this series is no longer available. Please see related products below or use the contact us button to reach out to our team.

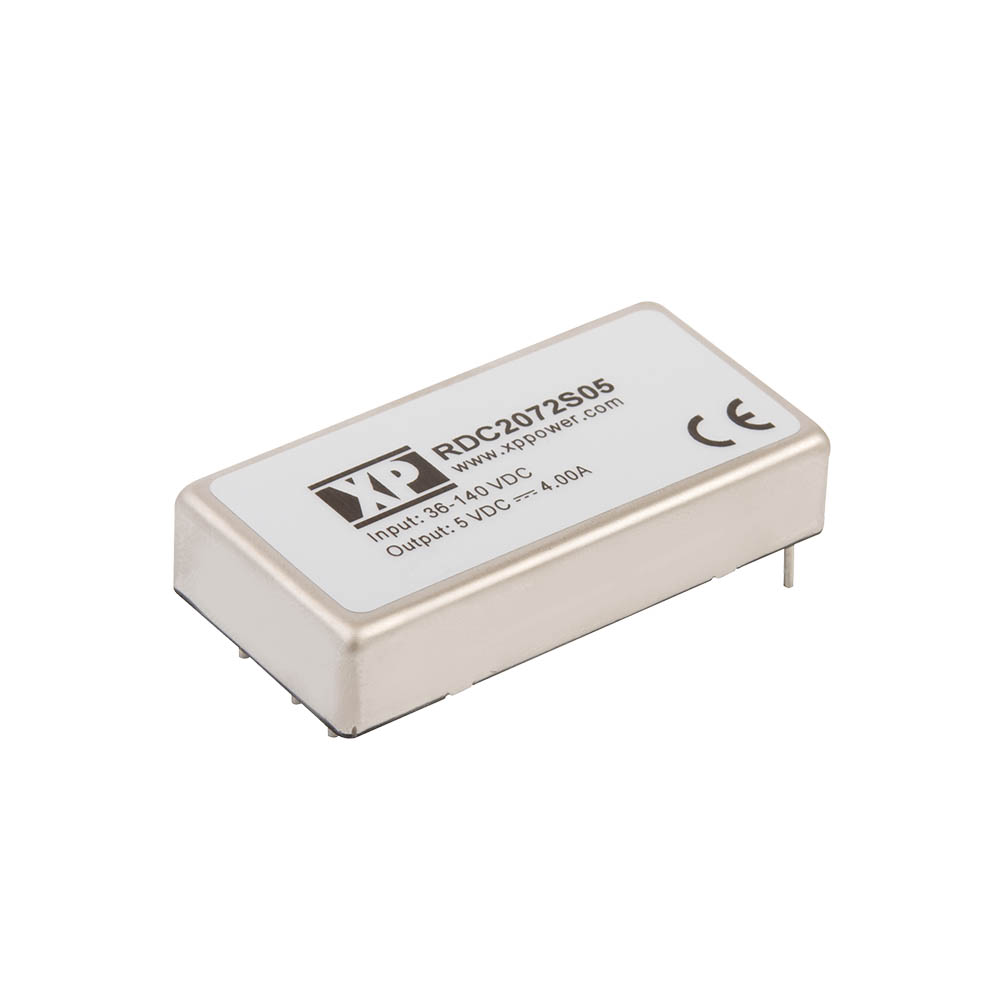

RDC20 Series
20W PCB mount single & dual output DC-DC converters for railway applications
RDC20 series converters designed for railway applications comply with EN50155 & meets EN50121-3-2 railway standards for electronic equipment used on traction & rolling stock.
The 20 Watt RDC20 is available in two input ranges, covering: 36 to 140VDC for 72VDC; 55 to 176VDC for 110VDC.
They are suitable for a wide range of railway applications where there is a low power requirement. They are also particularly suited to portable & battery-operated equipment where they can provide a constant load voltage at different states of battery charge/discharge.
Features
- Regulated single and dual outputs
- PCB mount package
- 72 & 110VDC input for railway applications
- 1.5kVAC basic isolation
- High power density
- High efficiency - up to 88%
- Remote On/Off
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
 | RDC2072S3V3 | 20W | 36 to 140VDC | 3.3V | 6A | Datasheet | Stock | RFQ |
| RDC2072S05 | 20W | 36 to 140VDC | 5V | 4A | Datasheet | Stock | RFQ |
| RDC2072S12 | 20W | 36 to 140VDC | 12V | 1.65A | Datasheet | Stock | RFQ |
| RDC2072S15 | 20W | 36 to 140VDC | 15V | 1.33A | Datasheet | Stock | RFQ |
| RDC2072D05 | 20W | 36 to 140VDC | 5V, -5V | 2A, 2A | Datasheet | Stock | RFQ |
| RDC2072D12 | 20W | 36 to 140VDC | 12V, -12V | 0.83A, 0.83A | Datasheet | Stock | RFQ |
| RDC2072D15 | 20W | 36 to 140VDC | 15V, -15V | 0.67A, 0.67A | Datasheet | Stock | RFQ |
| RDC20110S3V3 | 20W | 55 to 176VDC | 3.3V | 6A | Datasheet | Stock | RFQ |
| RDC20110S05 | 20W | 55 to 176VDC | 5V | 4A | Datasheet | Stock | RFQ |
| RDC20110S12 | 20W | 55 to 176VDC | 12V | 1.65A | Datasheet | Stock | RFQ |
| RDC20110S15 | 20W | 55 to 176VDC | 15V | 1.33A | Datasheet | Stock | RFQ |
| RDC20110D05 | 20W | 55 to 176VDC | 5V, -5V | 2A, 2A | Datasheet | Stock | RFQ |
| RDC20110D12 | 20W | 55 to 176VDC | 12V, -12V | 0.83A, 0.83A | Datasheet | Stock | RFQ |
| RDC20110D15 | 20W | 55 to 176VDC | 15V, -15V | 0.67A, 0.67A | Datasheet | Stock | RFQ |
