No longer manufactured
Unfortunately, this series is no longer available. Please contact us using the button below and our sales team will be able to provide the most suitable alternative.

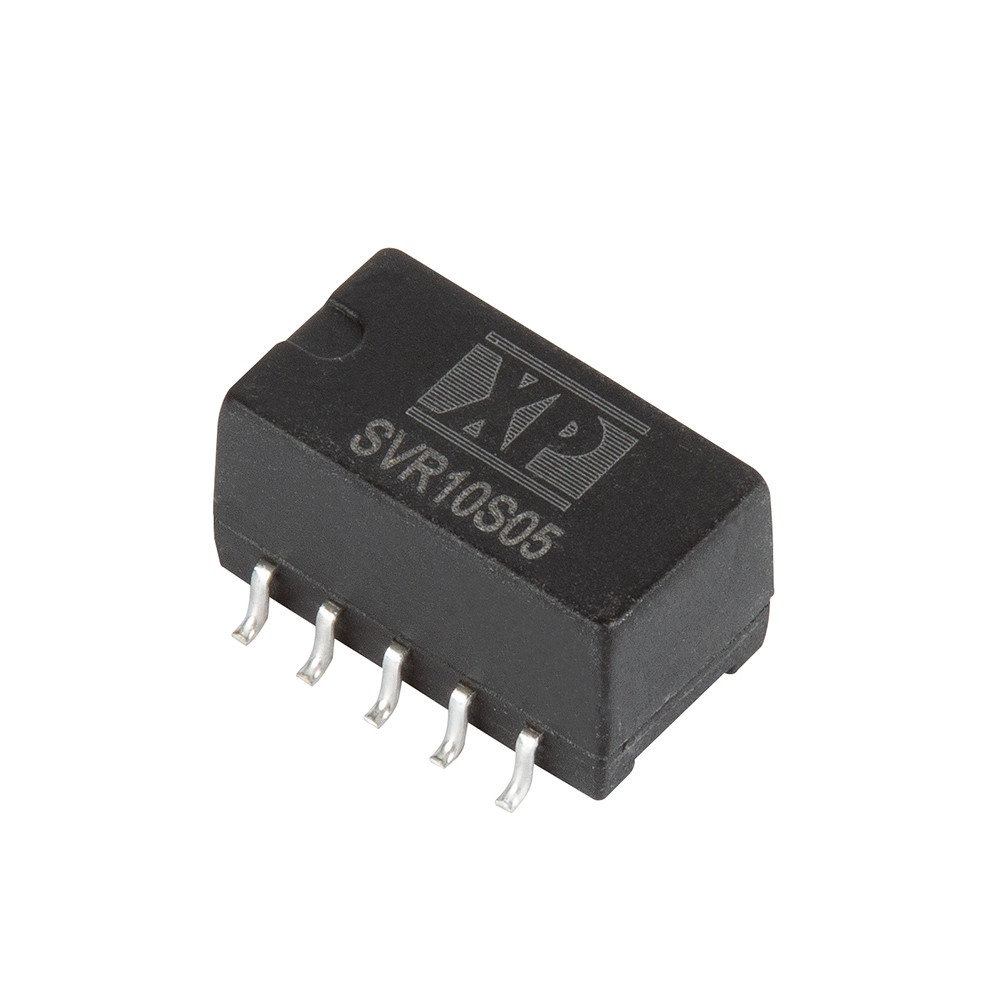

SVR10 Series
Low cost surface mount 1A SVR series SMD10 switching regulators
The 1A SVR10 switching regulators provide a competitive, low-cost, non-isolated point of load (PoL) solution without compromising on quality and performance.
An industry standard pin-out enables easy substitution for competitors’ products.
They are a compact, cost-effective means of step-down voltage conversion in all sorts of ITE & industrial electronic equipment, for instance: Portable & battery-operated equipment; Sensors; Robotics; Telecommunications; Instrumentation; Embedded computing; Distributed DC supply systems requiring regulation but not needing isolation.
Features
- Non-isolated 1.0A switching regulator
- Regulated single outputs 1.5 to 12VDC
- ±10% output trim
- Input range up to 36VDC
- SMD10 package
- Remote On/Off
- Short circuit protection
- Efficiency to 95%
- Class B conducted & radiated emissions
- -40°C to +85°C operating temperature
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
SVR10S1V5 | 1.5W | 4.75 to 32VDC | 1.5V | 1A | Datasheet | Stock | RFQ |
|
|
SVR10S1V8 | 1.8W | 4.75 to 32VDC | 1.8V | 1A | Datasheet | Stock | RFQ |
|
|
SVR10S2V5 | 2.5W | 4.75 to 32VDC | 2.5V | 1A | Datasheet | Stock | RFQ |
|
|
SVR10S3V3 | 3.3W | 6.5 to 36VDC | 3.3V | 1A | Datasheet | Stock | RFQ |
|
|
SVR10S05 | 5W | 8 to 36VDC | 5V | 1A | Datasheet | Stock | RFQ |
|
|
SVR10S6V5 | 6.5W | 10 to 36VDC | 6.5V | 1A | Datasheet | Stock | RFQ |
|
|
SVR10S09 | 9W | 13 to 36VDC | 9V | 1A | Datasheet | Stock | RFQ |
|
|
SVR10S12 | 12W | 16 to 36VDC | 12V | 1A | Datasheet | Stock | RFQ |
