No longer manufactured
Unfortunately, this series is no longer available. Please contact us using the button below and our sales team will be able to provide the most suitable alternative.
UCP180 Series
180W fan cooled 120W convection cooled U channel AC-DC power supplies for class II ITE & medical (BF) 2 x MOPP applications
Designed for Class II applications that are required to operate with no earth connection, the U channel UCP180 can provide 120W convection cooled, or the full 180W is available when fan cooled with a 10CFM airflow, a 12V/0.5A fan supply is standard. It has medical approvals with 2 x MOPP (input to output) making it suitable for medical (BF) applications and meets IEC/UL/EN62368-1 safety approval for information technology equipment.

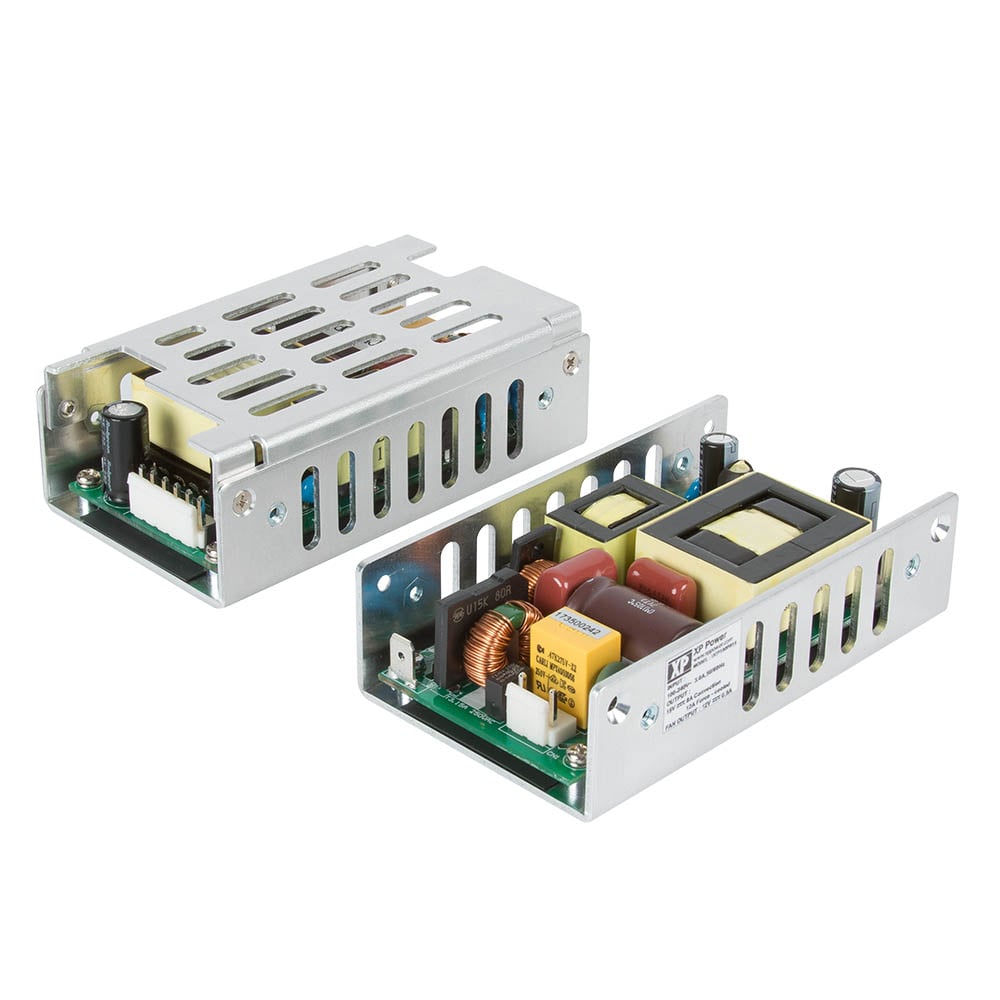

The UCP180 is available in two versions, standard as a vented U channel, alternatively, the -C version supplied with a vented top cover fitted. With high efficiency, high power density, low leakage currents and medical BF rating, the UCP180 is ideal for medical, industrial electronics and ITE applications requiring a compact, high power density chassis mount power supply.
Features
- 180W fan cooled 120W convection cooled
- 4.3” x 2.5” footprint, 1.6" profile
- Regulated single outputs 12V to 48VDC
- High Efficiency, up to 94%
- ITE & medical (BF, 2 x MOPP) approvals
- Class B conducted & class A radiated emissions
- Input voltage range 85 to 264VAC
- 12V/0.5A fan supply
- -20°C to +70°C operation (10CFM fan cooled)
- -40°C to +70°C operating (conduction cooled)
- Full power to +50°C
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
UCP180PS12 | 180W | Single Phase | 12V | 15A | Datasheet | Stock | RFQ |
|
|
UCP180PS15 | 180W | Single Phase | 15V | 12A | Datasheet | Stock | RFQ |
|
|
UCP180PS18 | 180W | Single Phase | 18V | 10A | Datasheet | Stock | RFQ |
|
|
UCP180PS24 | 180W | Single Phase | 24V | 7.5A | Datasheet | Stock | RFQ |
|
|
UCP180PS28 | 180W | Single Phase | 28V | 6.43A | Datasheet | Stock | RFQ |
|
|
UCP180PS36 | 180W | Single Phase | 36V | 5A | Datasheet | Stock | RFQ |
|
|
UCP180PS48 | 180W | Single Phase | 48V | 3.75A | Datasheet | Stock | RFQ |
